Kev Taw Qhia
Thaum tsim cov khoom uas xav tau kev tswj hwm kev txav mus los, cov kws ua haujlwm feem ntau yuav tsum xaiv ntawm lub damper linear thiab lub damper rotary. Ob qho tib si tuaj yeem ua tiav qhov cuam tshuam kaw mos mos, tab sis lawv cov hauv paus ntsiab lus ua haujlwm, kev siv tsim nyog, thiab cov kev cai teeb tsa sib txawv kiag li. Kev xaiv hom tsis raug tuaj yeem cuam tshuam rau kev paub ntawm tus neeg siv, tsim teeb meem teeb tsa, lossis ua rau tsis txaus damping kev ua tau zoo.
Tsab xov xwm no piv cov linear dampers thiab rotary dampers hla plaub qhov ntev - hom kev txav mus los, txoj cai ua haujlwm, daim ntawv thov tsim nyog, thiab qhov chaw teeb tsa - los pab koj sai sai txheeb xyuas qhov damper twg yog qhov zoo rau koj daim ntawv thov.
Tshooj 1: Qhov Txawv Tseem Ceeb — Hom Kev Txav Mus Los
Kauj ruam thawj zaug thiab tseem ceeb tshaj plaws hauv kev xaiv ntawm lub linear damper thiab lub rotary damper yog txheeb xyuas hom kev txav mus los hauv koj daim ntawv thov.

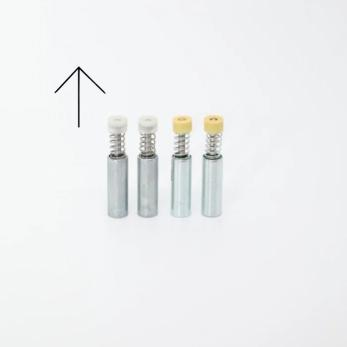

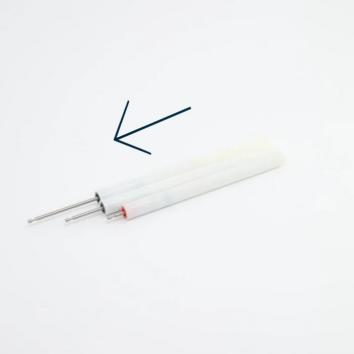

Ib lub linear damper tswj kev txav mus los ntawm kab ncaj. Lub piston txav mus raws txoj kev linear, thiab lub zog damping ua haujlwm ncaj qha rau hauv kev txav mus los. Cov linear dampers yog qhov tsim nyog rau txhua daim ntawv thov uas muaj kev hloov pauv linear.

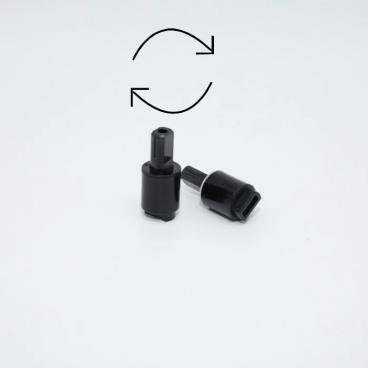

Ib lub rotary damper tswj kev txav mus los. Cov vanes sab hauv lossis cov iav tig los ntawm cov roj silicone viscous, tsim kom muaj kev tiv thaiv torque uas ua rau qhov tig qeeb. Rotary dampers yog tsim rau txhua daim ntawv thov uas cuam tshuam nrog kev tig ib ncig ntawm ib lub axis.
Ib txoj kev yooj yim los txiav txim siab:
- Koj cov khoom puas swb, thawb, lossis rub mus rau hauv kab ncaj? → Xaiv lub linear damper
- Koj cov khoom puas tig, tig, lossis qhib rau ntawm lub pob khawm? → Xaiv lub tshuab nqus cua rotary
Yog xav paub ntxiv txog kev ua haujlwm ntawm cov linear dampers, mus saibDab tsi yog Linear Damper Rau cov dampers rotary, saibDab tsi yog lub rotary damper.
Tshooj 2: Yuav Ua Li Cas Txhua Tus Ua Haujlwm
Yuav ua li cas lub linear damper ua haujlwm
Ib lub linear damper yog tsim los nrog lub caij nplooj ntoos hlav sab hauv hauv ib nrab ntawm nws lub stroke. Thaum lub sijhawm kaw, qhov txav mus los compresses lub caij nplooj ntoos hlav no, thiab lub compression tsim kev tiv thaiv uas cia li qeeb qeeb qhov kev txav mus los kaw. Thaum lub sijhawm qhib, lub caij nplooj ntoos hlav tso tawm thiab thawb cov roj damping sab hauv los ntawm ib txoj kev tswj hwm, cia lub linear damper rov pib dua zoo rau lub voj voog tom ntej. Qhov cuam tshuam damping ntawm lub linear damper tsuas yog ua haujlwm thaum kawg ntawm lub stroke - thawj ib nrab ntawm kev mus ncig yog dawb kiag li, yog li tag nrho kev txav mus los zoo li ntuj thiab tsis muaj zog.
Yuav ua li cas lub rotary damper ua haujlwm
Lub rotary damper puv nrog cov roj silicone viscous. Thaum lub zog sab nraud ua rau lub damper tig, cov vanes sab hauv lossis cov iav txav mus los ntawm cov roj, thiab qhov tsis kam ntawm cov roj viscous ua rau qhov kev sib hloov qeeb. Qhov no ua rau muaj kev txav mus los du, ntsiag to, thiab tswj tau thoob plaws hauv qhov kev sib hloov tag nrho. Tsis zoo li cov linear dampers, cov rotary dampers muab kev tiv thaiv tas mus li thoob plaws hauv kev sib hloov.
Tshooj 3: Cov Ntawv Thov Tsim Nyog
Cov linear dampers zoo tshaj plaws rau:
1.Cov txheej txheem kaw mos mos - lub linear damper tau teeb tsa rau ntawm qhov kawg ntawm lub qhov rooj swb. Yog xav paub ntxiv txog kev siv cov linear dampers hauv cov txheej txheem swb, saibCov Dampers Linear rau Cov Txheej Txheem Sliding.
2. Cov qhov rooj zawv zawg
3. Cov qhov rooj qhib ntsug xws li cov qhov rooj tub yees, cov qhov rooj qhov cub, thiab cov qhov rooj ntxuav tais diav
4. Cov txheej txheem thawb-rub thiab lwm yam qauv txav mus los
Cov dampers rotary zoo tshaj plaws rau:
1. Cov rooj zaum hauv chav dej kaw mos mos
2. Sab hauv tsheb — cov chaw ntim hnab looj tes, chaw so tes nruab nrab, cov chaw tuav khob
3. Lub hau npog ntawm lub tshuab ntxhua khaub ncaws
4. Cov qhov rooj zawj thiab cov qhov rooj txee kaw mos mos
5. Tig lub hau npog xws li lub hau piano thiab cov keyboard npog
6. Cov khoom siv kho mob thiab cov txaj pw hauv tsev kho mob uas hloov tau
Yog xav paub ntxiv txog kev siv lub txee, mus saibTus nqi ntawm daim ntawv thov ntawm cov linear dampers hauv cov txee systems.
Tshooj 4: Qhov Txawv Tseem Ceeb ntawm Ib Saib Ib Muag
| Khoom | Linear Damper | Lub Tshuab Damper Rotary |
| Hom Kev Tawm Tsam | Linear / ncaj nraim | Kev sib hloov pauv |
| Txoj Cai Ua Haujlwm | Caij nplooj ntoos hlav compression + damping roj pib dua | Kev tiv thaiv kua dej viscous thoob plaws kev sib hloov |
| Kev Ua Kom Damping | Tsuas yog qhov kawg ntawm stroke | Thoob plaws tag nrho ntawm kev txav mus los |
| Zoo Tshaj Plaws Rau | Cov tub rau khoom, qhov rooj swb, qhov rooj khoom siv hluav taws xob | Cov pob qhov rooj, cov hau, cov rooj zaum hauv chav dej, cov khoom siv sab hauv tsheb |
| Kev teeb tsa | Raws li kev taw qhia ntawm kev txav mus los linear | Nyob rau ntawm lossis nyob ib puag ncig ntawm lub axis tig |
| Kev Pom Kev Tom Qab Kev Teeb Tsa | Tej zaum yuav pom ib nrab | Feem ntau zais rau hauv lub pob khawm lossis cov qauv |
Tshooj 5: Kev Xav Txog Qhov Chaw Teeb Tsa
Qhov chaw teeb tsa uas muaj feem ntau txiav txim siab seb hom damper twg siv tau, thiab qhov no yuav tsum tau xav txog thaum ntxov hauv cov txheej txheem tsim khoom.
Qhov chaw xav tau rau kev teeb tsa linear damper Ib lub linear damper xav tau qhov chaw txaus raws li kev taw qhia ntawm kev txav mus los, suav nrog qhov ntev ntawm lub damper nws tus kheej thiab qhov chaw seem uas xav tau rau tag nrho stroke. Hauv qee qhov kev teeb tsa, lub linear damper yuav pom tau ib nrab, yog li qhov chaw teeb tsa thiab qhov tsos yuav tsum tau npaj thaum lub sijhawm tsim qauv. Yog xav paub ntxiv txog kev teeb tsa, saibYuav Ua Li Cas Xaiv Ib Lub Damper Linear.

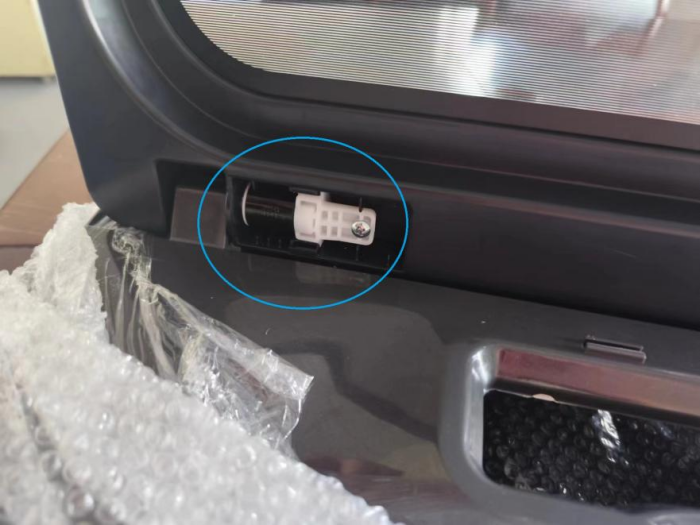

Qhov chaw xav tau rau kev teeb tsa lub tshuab nqus cua rotary Lub tshuab nqus cua rotary tau teeb tsa rau ntawm lossis nyob ib puag ncig ntawm txoj kab sib hloov thiab feem ntau tuaj yeem zais tag nrho hauv lub pob khawm lossis cov qauv sab hauv ntawm cov khoom. Nws tsis xav tau qhov chaw ntxiv. Rau cov khoom uas qhov tsos yog qhov tseem ceeb, cov tshuab nqus cua rotary feem ntau muab qhov zoo nkauj dua thiab sib xyaw ua ke dua.
Tshooj 6: Yuav ua li cas yog tias koj daim ntawv thov siv tau ib qho twg?
Muaj tej lub sij hawm, ob lub linear damper thiab rotary damper yuav ua tau kom kaw tau zoo. Yog tias koj tseem tsis paub tseeb tias yuav xaiv qhov twg, cov lus qhia hauv qab no yuav pab tau:
1. Koj cov khoom twb muaj cov qauv ntaiv swb lawm → Xaiv lub linear damper; kev teeb tsa yooj yim dua
2. Koj cov khoom qhib rau ntawm lub pob khawm tab sis qhov chaw teeb tsa tsawg → Xav txog lub rotary damper; nws tuaj yeem yooj yim dua zais.
3. Koj xav tau lub zog damping siab dua (50N lossis siab dua) → Lub linear damper yog qhov tsim nyog dua; rotary dampers raug ntsuas hauv torque es tsis yog linear force
4. Qhov tsos yog qhov tseem ceeb thiab lub damper yuav tsum tsis txhob pom → Lub rotary damper yog qhov tsim nyog dua
5. Koj tsis paub meej tias qhov kev daws teeb meem twg haum rau koj cov khoom → Tiv tauj peb pab neeg engineering nrog koj cov qauv khoom thiab cov kev txav mus los, thiab peb yuav pom zoo kom siv lub damper uas haum tshaj plaws
Cov Dampers Linear
TRD-LELub zog damping ntau ntawm 50N–1000N, qhov ntev ntawm lub caij nplooj ntoos hlav yog 30 hli, lub caij nplooj ntoos hlav pib dua tshiab. Haum rau cov tub rau khoom, cov qhov rooj tub yees, thiab cov vaj huam sib luag uas xav tau kev kaw mos mos ntau zaus.
Cov Dampers Linear
TRD-0855Kev siv zog ua haujlwm ≥55mm, lub neej ua haujlwm txog li 50,000 lub voj voog. Haum rau cov ntawv thov uas cov qauv sab nraud tswj hwm qhov pib dua.
Cov Dampers Rotary

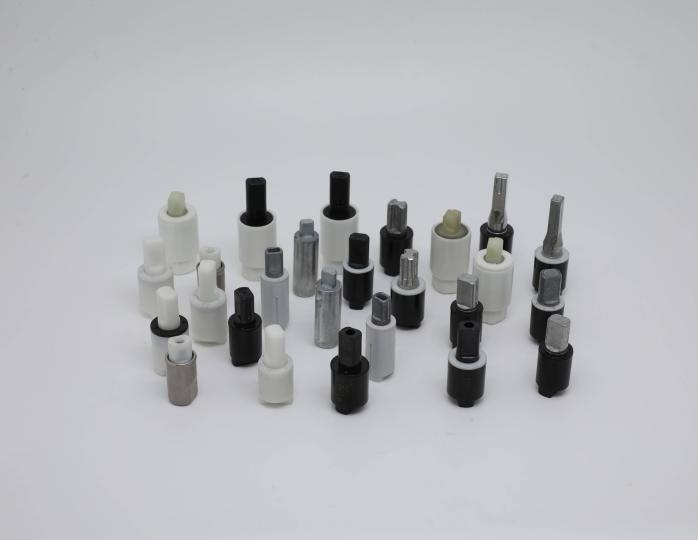

Toyou muaj ntau yam khoom sivcov dampers rotarysuav nrog Disk Dampers, Gear Dampers, Barrel Dampers, thiab Vane Dampers, uas npog ntau yam kev xav tau torque thiab kev siv rotational.
