Miniature Shock Absorber Linear Dampers TRD-LE
Linear Damper Specification
| Qauv No. | Lub taub hau xim | quab yuam(N) |
| TRD-LE2-50 | dawb | 50 ± 10 N |
| TRD-LE2-100 | ntsuab | 100 ± 20 N |
| TRD-LE2-200 | grey | 200 ± 40 N |
| TRD-LE2-300 | daj | 300 ± 60N |
| TRD-LE2-450 | dawb | 450 ± 80 N |
| TRD-LE2-510 | xim av | 510 ± 60 N |
| TRD-LE2-600 | lub teeb xiav | 600 ± 80 N |
| TRD-LE2-700 | txiv kab ntxwv | 700 ± 100 N |
| TRD-LE2-800 | fuchsia | 800 ± 100 N |
| TRD-LE2-1000 | liab | 1000 ± 200 N |
| TRD-LE2-1300 | liab | 1300 ± 200 N |
| Force 100% tshawb xyuas hauv kev tsim khoom ntawm 2 mm / s ntawm RT | ||
| * ISO9001: 2008 | ||
| * ROHS cov lus qhia | ||
Linear Dashpot CAD Drawing
Dampers Feature
| Daim Ntawv Pov Thawj | |
| Base thiab Yas Qws | Hlau |
| Caij nplooj ntoos hlav | Hlau |
| Cov ntsaws ruaj ruaj | Roj hmab |
| Valve thiab Cap | Yas |
| Roj | Silicone roj |
| TRD-LE | TRD-LE 2 |
| Lub cev | φ12 * 58mm |
| Cap | φ11 |
| Max Stroke | 12 hli |
Lub neej: 200,000cycles ntawm RT, Ncua ntawm txhua cyle 7 sec.

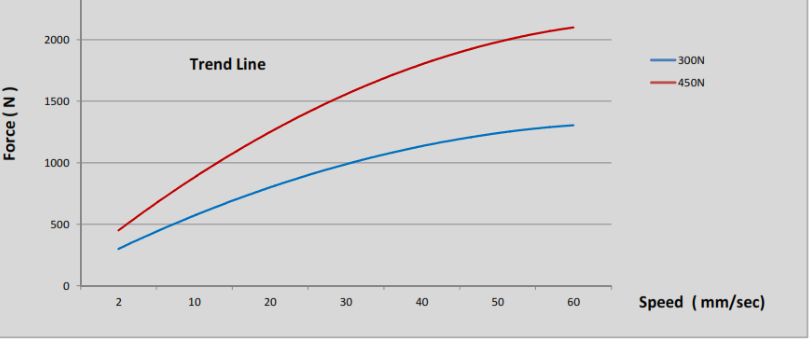

Yam ntxwv Damper
Tag nrho cov khoom yog 100% kuaj ntawm tus nqi quab yuam.
Lub kaus mom lub taub hau, quab yuam thiab xim tuaj yeem ua ke muab kev tsim qauv yooj yim.
Daim ntawv thov
Lub damper no muaj ib txoj kev damping nrog ib qho rov qab tsis siv neeg (los ntawm lub caij nplooj ntoos hlav) thiab rov caj npab. Nws siv nyob rau hauv ntau txoj kev siv-chaw ua noj ncu, freezers, Kev lag luam tub yees thiab lwm yam nruab nrab rau hnyav hnyav teb thiab swb daim ntawv thov.
